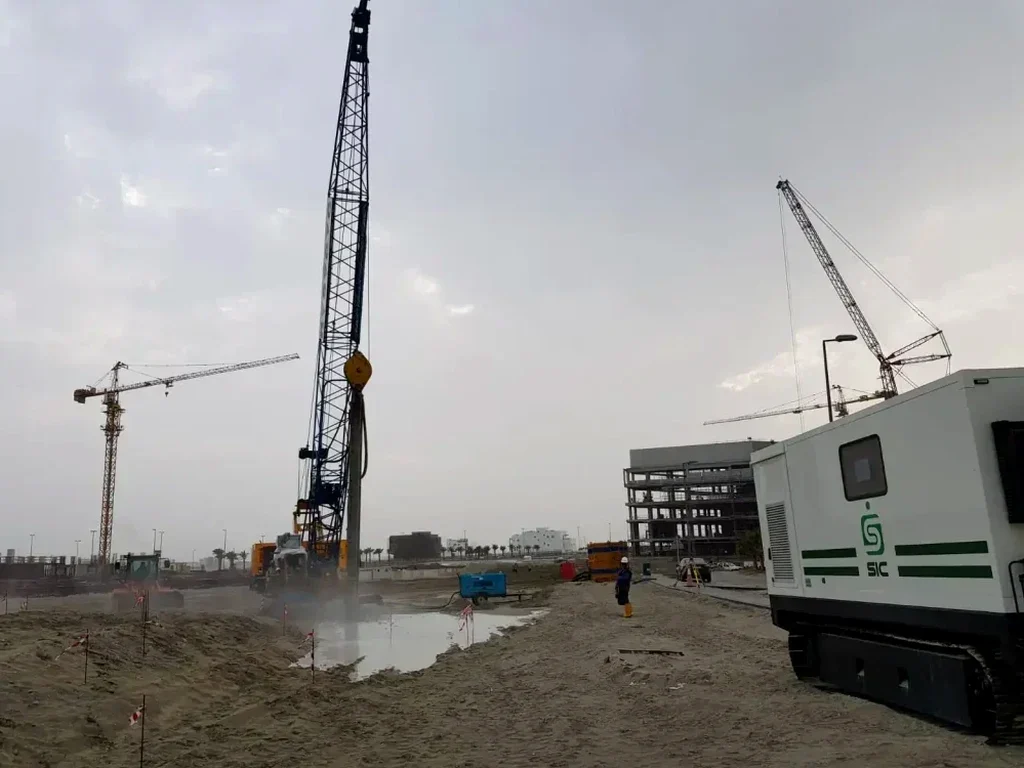

A recurring mistake we see in San Francisco is treating vibrocompaction as a generic deep compaction method without adapting the grid and energy to the heterogeneous fills underlying the city. Much of the Financial District and Mission Bay sits on hydraulic fills and dune sands that were placed without engineered compaction, and a one-size-fits-all probe spacing often leaves untreated lenses that settle differentially after the first moderate earthquake. Our approach starts with a CPT-calibrated stratigraphy to map zones where the fines content exceeds 15 percent, because that is where vibratory penetration loses efficiency and you need to consider complementary ground improvement. In San Francisco’s dense urban fabric, the design also has to account for vibration monitoring thresholds at adjacent historic structures, which the building department reviews closely under the existing building code provisions for construction impact.
In San Francisco’s artificial fills, vibrocompaction is not just about density — it is about creating a uniform mass that drains and behaves predictably during a major seismic event.
Scope of work in San Francisco
Critical ground factors in San Francisco
The coastal microclimates of San Francisco introduce a risk that arid-climate compaction specs overlook: seasonal saturation cycling. The wet winter months push the groundwater up into the fill layer, and if the vibrocompaction design assumes a dry state that only exists in September, the achieved density can degrade by April. We have measured a 5 to 8 percent drop in CPT tip resistance in the upper 10 feet of treated fills after a single rainy season when the drainage paths were not properly designed. The bigger danger, however, is liquefaction in a city where the USGS seismic hazard maps place the probability of a M6.7+ event on the San Andreas or Hayward faults within the design life of most structures. Loose saturated sands below the groundwater table are precisely the condition that vibrocompaction must eliminate, and a design that does not verify post-treatment cyclic resistance ratio through site-specific CPT data is gambling with the performance of the foundation system.
Our services
Our vibrocompaction design package for San Francisco sites integrates field investigation, numerical modeling, and construction-phase QA/QC so that the improved ground meets both the geotechnical engineer’s intent and the structural engineer’s foundation assumptions.
Liquefaction Mitigation Design with Vibrocompaction
We develop site-specific treatment grids using CPT and grain-size data, calibrated to achieve a target factor of safety against liquefaction triggering per ASCE 7. The design includes pre- and post-treatment verification protocols, vibration monitoring plans for adjacent structures, and specifications for water jetting parameters in the Bay Area's variable fills.
QA/QC Supervision and Post-Treatment Testing
Full-time field engineering during vibrocompaction operations, including real-time energy monitoring, probe penetration rate logs, and post-treatment CPT soundings at each verification location. We compile the data into a stamped report that demonstrates compliance with the IBC performance criteria for the improved site class.
Frequently asked questions
How deep can vibrocompaction reach in San Francisco's bay fill?
In the loose hydraulic fills and dune sands common to San Francisco, vibrocompaction using standard electric or hydraulic probes typically reaches 45 to 55 feet below grade. Beyond that depth, probe following becomes difficult and the energy transfer drops significantly. For deeper liquefiable layers, we evaluate whether the lower portion can remain untreated based on the site-specific seismic demand, or whether a hybrid approach with stone columns is warranted.
What is the cost range for a vibrocompaction design in San Francisco?
A complete vibrocompaction design package — including CPT-based liquefaction analysis, treatment grid layout, construction specifications, and post-treatment verification — runs between US$1,430 and US$4,770 depending on the treated area and the number of verification soundings required. Small commercial lots with a single building footprint fall at the lower end; multi-block mixed-use developments with vibration monitoring on adjacent historic structures fall at the upper end.
Does vibrocompaction work if the fill has clay layers intermixed?
Vibrocompaction loses effectiveness when the fines content exceeds roughly 15 to 20 percent, because the clay and silt dampen the vibratory energy instead of rearranging the sand grains. In San Francisco, where the artificial fill often contains lenses of bay mud, we first map the clay distribution with CPT pore pressure data. If the clay lenses are thin and isolated, we may still proceed with vibrocompaction and accept that those lenses will not densify; if they are thick and continuous, we switch to a stone column or rigid inclusion design that bypasses the clay.
How do you verify that the ground has reached the design density?
We specify pre-treatment and post-treatment CPT soundings at the centroid of each compaction cell, comparing tip resistance and sleeve friction before and after. The acceptance criterion is typically a target normalized tip resistance that corresponds to a relative density of 70 to 85 percent. We also cross-check with SPT N60 values at selected locations and require the contractor to log probe amperage and penetration rate during every column, so we can correlate energy input with the measured improvement.
What vibration limits apply near San Francisco's historic buildings?
The San Francisco Department of Building Inspection generally enforces a peak particle velocity limit of 0.5 inches per second at the nearest adjacent foundation for continuous vibration sources like vibroflotation rigs, though the specific limit is set by the project geotechnical engineer based on the condition and fragility of the structure. We design the compaction sequence to start with the rows farthest from the sensitive building and monitor with triaxial geophones in real time, adjusting probe frequency and residence time if the readings approach the threshold. More info.
