One of the most expensive mistakes we see in San Francisco is a contractor starting excavation in the Marina District or South of Market without a verified ground improvement strategy—assuming a standard mat foundation will suffice. The reality hits when they encounter the soft Bay Mud and uncompacted artificial fill that underlies nearly a third of the city. In San Francisco, stone column design isn't a commodity item you can pull from a generic catalog; it requires a detailed understanding of the local stratigraphy, where sand lenses and old marsh deposits can vary drastically within a single city block. The 1989 Loma Prieta earthquake taught us that liquefaction in these fills is not a theoretical risk but a predictable consequence of poor ground treatment. Our approach integrates site-specific CPT testing to profile the weak layers with precision before any stone column grid is laid out.
In San Francisco, stone column design is less about the aggregate and more about accurately predicting how the improved composite ground will behave during a major seismic event.
Scope of work in San Francisco
Critical ground factors in San Francisco
The contrast between the bedrock in Nob Hill and the soft fill in the Financial District is the entire story of geotechnical risk in San Francisco. On the hills, you might not even need a ground improvement contractor; two miles east, in the artificially filled zones, you are designing for up to 20 feet of liquefiable sand and sensitive clay. The biggest risk we see in San Francisco is not just bearing failure, but post-earthquake settlement that leaves a building structurally sound but functionally useless due to tilted floors and broken utilities. When you skip a site-specific stone column design in these areas, you are essentially betting that the design earthquake won't occur during the structure's lifetime—a bet that is hard to justify in a city with a 72% probability of a magnitude 6.7 or greater event in the next 30 years, according to the USGS.
Our services
Our technical scope for stone column projects in San Francisco covers the full design lifecycle, from the initial feasibility review through to the validation of the installed improvement.
Seismic Ground Improvement Analysis
We perform advanced numerical modeling of the composite ground to estimate settlement during the MCE and design-level events. The analysis includes a review of the column-reinforced soil interaction under cyclic loading, using site-specific acceleration time histories consistent with the San Francisco Bay Area seismicity.
Construction Phase Verification

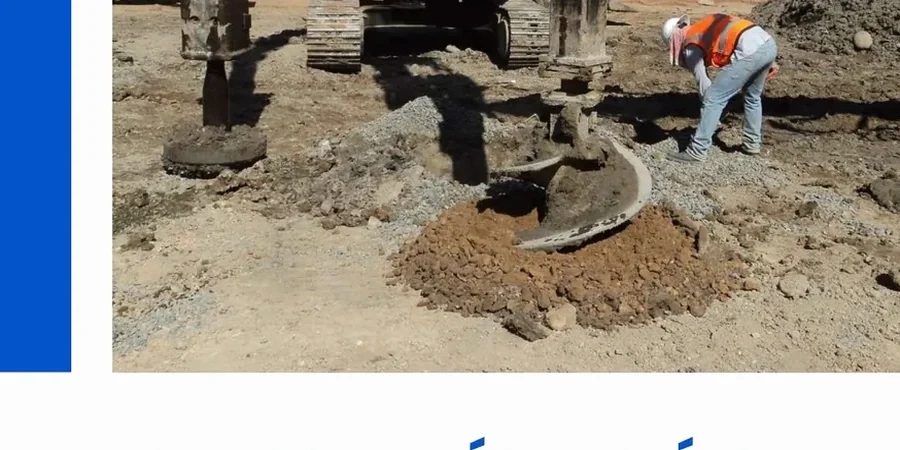

During the vibro-replacement process, we monitor the installation records—amperage, stone consumption, and penetration rate—and compare them against the design assumptions. Post-installation, we supervise a program of CPT soundings and plate load tests to confirm the as-built bearing capacity meets the project specifications.
Frequently asked questions
How does stone column design address the Bay Mud conditions common in San Francisco?
The Bay Mud is a normally consolidated, highly compressible silty clay that loses significant strength when disturbed. Our design approach focuses on controlling the radial confinement of the columns within these layers. We typically use a higher replacement ratio—often above 25%—and specify a graded stone with a high internal friction angle to ensure the column maintains its integrity. The design also accounts for the expected consolidation settlement of the mud between the columns, which is why we pair the stone column grid with a detailed post-construction settlement monitoring plan.
What is the typical cost range for a stone column design package in San Francisco?
A complete stone column design for a typical San Francisco lot, including the site investigation review, numerical analysis, and construction specifications, generally falls between US$1,250 for a straightforward single-family residential improvement and US$4,700 for a complex multi-story mixed-use project with rigorous seismic performance criteria.
Which analysis method do you use for stone column design in a seismic zone?
We run a couple of parallel approaches to avoid blind spots. For the static settlement, we start with the Priebe method for the unit cell concept, then refine it with a Balaam and Booker finite element analysis to capture the interaction between the column and the soft soil. For the seismic phase, we apply the Seed and Idriss simplified procedure to check liquefaction triggering in the untreated matrix, and then model the composite shear resistance to confirm the global factor of safety against a flow failure. More info.
